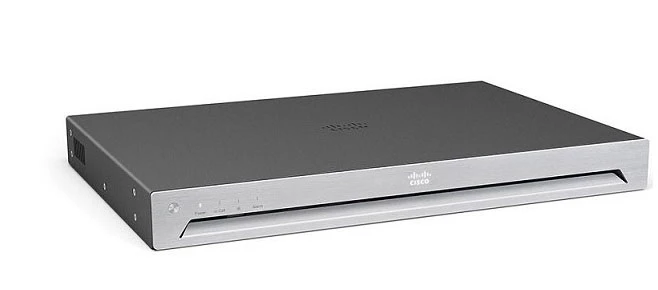

| Model | CTS-SX80-IP60-K9 |
| Software compatibility | Software Version TC 7.1 or later |
| Cisco Collaboration Endpoint Software 8.0 or later |
| Bandwidth | H.323/SIP up to 6 Mbps point-to-point |
| Up to 10 Mbps total MultiSite bandwidth |
| Minimum bandwidth for resolution/frame rate (H.264) | 720p30 from 768 kbps |
| 720p60 from 1152 kbps |
| 1080p30 from 1472 kbps |
| 1080p60 from 2560 kbps |
| Video standards | H.261, H.263, H.263+, H.264 and H.265 |
| (SIP only for H.265) |
| Video features | Advanced screen layouts |
| Custom video layouts |
| Local auto layout |
| Video inputs (five inputs) | Three HDMI Inputs |
| One DVI-I Input |
| Analog (VGA or YPbPr) |
| Digital (DVI-D) |
| One Composite/S-Video Input (BNC Connectors): PAL/NTSC |
| Extended Display Identification Data (EDID) |
| Video outputs (three outputs) | Two HDMI Outputs and one DVI-I Output |
| VESA Monitor Power Management |
| Extended Display Identification Data (EDID) |
| Audio standards | G.711, G.722, G.722.1, G.728, G.729AB, 64 kbps and 128 kbps MPEG4 AAC-LD mono and stereo, OPUS |
| Audio features | CD-quality 20 kHz mono and stereo |
| Eight separate acoustic echo cancellers |
| Eight-port audio mixer |
| Eight assignable equalizers |
| Automatic Gain Control (AGC) |
| Automatic noise reduction |
| Active lip synchronization |
| Audio inputs (fifteen inputs) | Eight microphones, 48V phantom powered, Euroblock connector, each with separate echo cancellers and noise reduction; all microphones can be set for balanced line level |
| Four balanced line level inputs, Euroblock connector |
| Three HDMI, digital: stereo PC/DVD input |
| Audio outputs (eight outputs) | Six balanced line level outputs, Euroblock connector |
| Two HDMI outputs |
| Dual stream | H.239 (H.323) dual stream |
| BFCP (SIP) dual stream |
| Support for resolutions up to 1080p30, and independent of main stream resolution |
| Multipoint support | Five way embedded SIP/H.323 multipoint (reference MultiSite) |
| Cisco ad-hoc conferencing (requires CUCM, Cisco TelePresence Server and Conductor) |
| Cisco Conferencing Active Control |
| Switched Conferencing (SVC)3 |
| MultiSite features (embedded multipoint) | Five way 720p30, three way and four way 1080p30 MultiSite |
| Full individual audio and video transcoding |
| Individual layouts in MultiSite continuous presence |
| H.323/SIP/VoIP in the same conference |
| Support for Presentation (H.239/BFCP) from any participant at resolutions up to 1080p15 |
| Best Impression (Automatic continuous presence layouts) |
| H.264, encryption, and dual stream from any site |
| Additional telephone call (no license required) |
| IP downspeeding |
| Dial in and dial out |
| Conference rates up to 10 Mbps |
| Protocols | H.323 |
| SIP |
| Dual call stack support (SIP and H.323) |
| ISDN (requires Cisco ISDN Link) |
| Embedded encryption | H.323/SIP point-to-point |
| Standards-based: H.235 v3 and Advanced Encryption Standard (AES) |
| Automatic key generation and exchange |
| Supported in dual stream |
| IP network features | DNS lookup for service configuration |
| Differentiated Services (QoS) |
| IP adaptive bandwidth management (including flow control) |
| Auto gatekeeper discovery |
| Dynamic playout and lip-sync buffering |
| H.245 DTMF tones in H.323 |
| Date and Time support via NTP |
| Packet Loss based downspeeding |
| URI Dialing |
| TCP/IP |
| DHCP |
| 802.1x Network authentication |
| 802.1Q Virtual LAN |
| 802.1p (QoS and Class of Service [CoS]) |
| ClearPath |
| RFC 4733 DTMF tones in SIP |
| Call control | Cisco Unified Communications Manager (CUCM) |
| Native registration with CUCM |
| Requires CUCM Version 8.6(2) or later with device pack for SX80 |
| Basic CUCM provisioning |
| Firmware upgrade from CUCM |
| Cisco Discovery Protocol and DHCP option 150 support |
| Basic telephony features such as hold, resume, transfer, and corporate directory lookup |
| Cisco Video Communication Server (VCS) |
| Native registration with VCS |
| Cisco Webex |
| Third-party H.323 Gatekeepers and standards-based SIP proxies |
| IPv6 network support | Single call stack support for both H323 and SIP |
| Dual-stack IPv4 and IPv6 for DHCP, Secure Shell (SSH), HTTP, Secure HTTP (HTTPS), DNS, and Differentiated Services (DiffServ) |
| Support for both static and autoconfiguration (stateless address auto configuration) |
| Network interfaces | One LAN/Ethernet (RJ-45) 10/100/1000 Mbit |
| Two LAN/Ethernet (RJ-45) interfaces to be used for Cisco peripherals |
| Power | Auto-sensing power supply |
| 100-120/200-240 VAC, 50/60 Hz |
| 170 watt maximum for codec and main camera |
| Operating temperature and humidity | 0 to 40° |
| 10 to 90% Relative Humidity (RH) |
| Storage and transport temperature | -20° C to 60° C (-4° F to 140° F) at RH 10-90% (non-condensing) |
| Dimensions | Length: 17.4 in |
| Height: 1.7 in |
| Depth: 12.2 in |
| Weight: 8.05 lbs |
